Franklin Electric

Complete water, fueling and energy solutions, comprised of world-class brands and services that you trust: Franklin Electric is your partner to keep moving forward. Our family of product brands are grouped into distinct applications that make the most sense to our customers, covering every function of water and energy from clean water, water transfer, wastewater, and energy systems.

When you choose Aggressive Pump & Supply as your trusted partner for Franklin Electric products, you can expect nothing less than excellence in motion. Our team of knowledgeable professionals is ready to assist you in finding the perfect water solutions that align with your unique requirements. We provide comprehensive support, from product selection and technical guidance to after-sales service, ensuring a seamless experience throughout your journey.

  • Submersible Well Pumps & Vertical Turbines

  • Submersible Motors & Control Boxes

  • Surface, Centrifugal & Packages

  • Water Pressure Multi-Stage Pumps & Packages

  • Drives, Starters, & Protection

  • Effluent Pumps

  • Grinder Pumps & Systems

  • Non-Clog Pumps & Systems

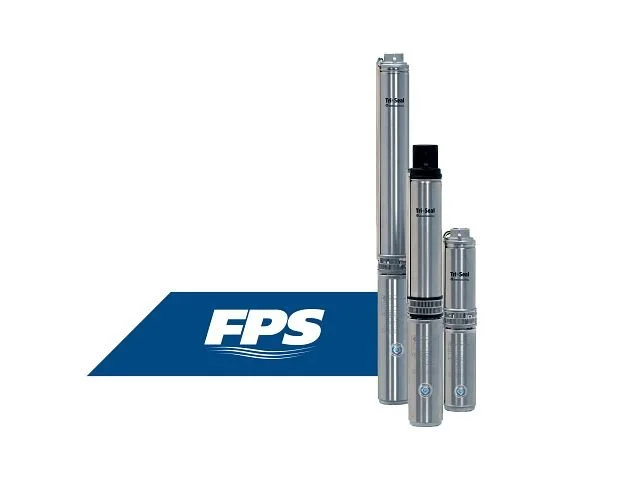

Submersible Well Pumps

Franklin Electric offers a variety of submersible pumps designed for the movement of water. These submersible well pumps feature proven components, able to withstand the harshest environments, and provide superior performance for many different applications.

Features & Benefits

  • Pump diameter is smaller than a standard 4-inch submersible for easier installation in reduced diameter 4-inch wells.

  • Hex rubber bearing and ceramic shaft sleeve allows sand and abrasives to pass through, virtually eliminating shaft wear and upper bearing failures.

  • Improved hydraulic performance for deeper set depths at all horsepower and flow ratings.

    • Floating stage design allows for maximum efficiency while minimizing the downthrust load that is transferred to the motor.

    • Modified PPO diffuser and disc with 300 Series stainless steel thrust and eye seal protection for durability and abrasion resistance.

    • Acetal impeller provides high performance to increase pressure output while reducing system losses from friction.

  • Removable spring-loaded check valve.

  • Stainless steel pump intake screen and stainless steel cable guard.

  • Maximum water temperature: 120 °F / 49 °C.

  • Powered by corrosion-resistant Franklin Electric submersible 4-inch motor with lightning protection.

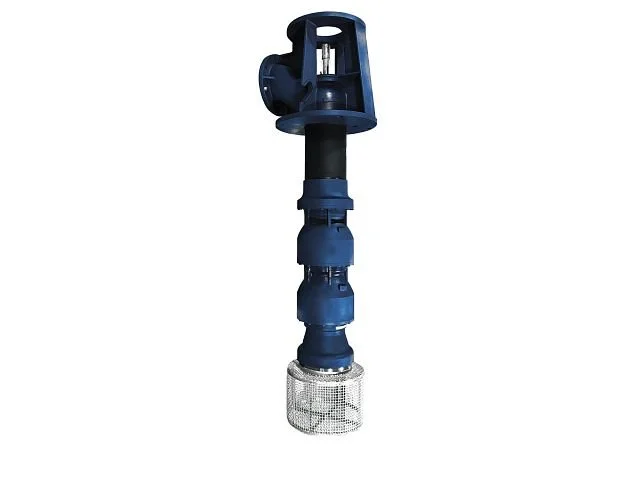

FVT Series Vertical Lineshaft Turbine

From a deep-set vertical lineshaft turbine that delivers 2,500 feet of head – to turbines moving 35,000 gallons per minute – our array of pumping solutions is engineered to handle the toughest applications. This vertical lineshaft turbine is ideal for commercial, municipal or industrial settings where water supply is readily available in rivers, lakes, ponds, streams or water wells. Plus, they come in a variety of configurations, including mixed or axial flow. Outfitted with ASTM A48 high tensile cast iron bowls, investment-cast 304 stainless impellers, and bronze bearings standard, you get superior materials for proven durability, aligned with a highly efficient broad operating range.

Performance Specifications

  • Size Range: 6" (150 mm) – 42" (1100 mm) Bowls

  • Discharge Size: 4", 6", 8", 10", 12", 14" and 16"

  • Capacity: Flows up to 35,000 GPM (7,950 m³/hr)

  • Total Dynamic Head: up to 2,500+ feet (762+ m)

  • Operating Temperature: up to 400 °F (204 °C)

  • Speed Ranges: 450 RPM to 3,600 RPM

  • Power: up to 2,000 hp

Features

  • Impeller

    • Constructed from investment-cast 304 stainless steel

    • Choice of semi-open or enclosed impellers with broad operating range

    • Dynamically balanced to ISO standards

  • Bowl

    • Constructed from ASTM A48 high tensile cast iron; bowls less than 15" are standard with internal vitreous enamel glass lining

    • Corrosion-resistant heavy walls are designed for long service life

    • O-ring bowl connection standard through 16" diameter

    • Bronze standard bearings

  • Lineshaft

    • Outfitted with 416 stainless steel threaded or keyed couplings

    • Product or oil-lubricated lineshaft

  • Discharge Head

    • Standard cast iron available up to 16"

    • Fabricated heads configurable to any application

  • Additional

    • Specify, configure, and price your vertical turbine with FE Select

    • Compatible with a variety of motor types and drives

    • Classified by UL to NSF/ANSI/CAN 61 Standards for Drinking Water Applications

    • Various options in sizing, design, and material constructions can be specified to meet application needs

    • Available metallurgies: cast iron, ductile iron, 316 stainless steel, Cd4Mcu, and more for a wide range of high pressure, corrosive, or abrasive applications.
